Our objective is simple: to enable you to reuse your insulated packaging while optimizing your supply chain, total cost of ownership, and environmental impact.
1. Securing the global pharma cold chain

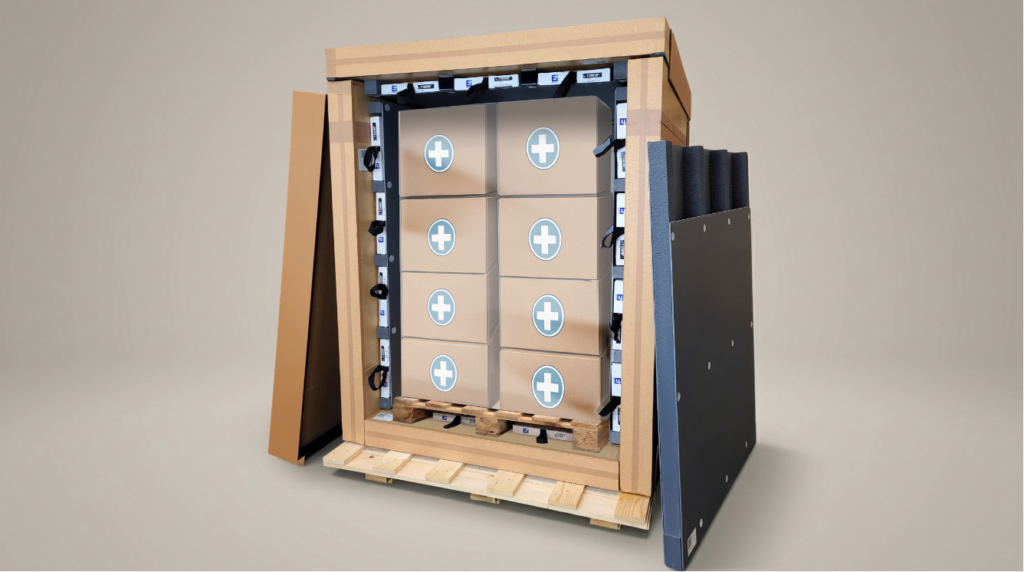

In pharmaceutical logistics and international cargo transport, strictly maintaining the cold chain is both a regulatory and public health imperative. EMBALL’ISO’s HPPS (High Performance Pallet Shipper) stands out as the essential Premium+ solution for securing bulk shipments of human and animal health products. Engineered to withstand the rigors of air and land freight, the HPPS protects critical payloads against temperature fluctuations using advanced insulation technologies and high-performance Phase Change Materials (PCM).
2. Technical features and specifications of HPPS models
The HPPS system is available in three volumetric configurations designed to seamlessly adapt to global palletization standards (Euro Pallet and US Pallet):
| SYSTEM WEIGHT | |||||||
|---|---|---|---|---|---|---|---|
| Product name | Internal volume | Internal Space L x W x H |
External dimensions L x W x H |
Volumetric weight | Cool / Temperate | Freeze | |
| Euro HPPS (1 Euro Pallet) |
1,213 L | 1200 x 850 x 1190 mm 47.2 x 33.5 x 46.8 in |
1545 x 1170 x 1590 mm 60.8 x 46.1 x 62.6 in |
480 kg 1056 lb |
199 kg 439 lb |
241 kg 531 lb |
|
| US HPPS (1 US Pallet) |
1,619 L | 1267 x 1069 x 1196 mm 49.9 x 42.1 x 47.1 in |
1597 x 1389 x 1589 mm 62.9 x 54.7 x 62.6 in |
589 kg 1295 lb |
219 kg 483 lb |
262 kg 577 lb |
|
| Double HPPS (2 Euro or US Pallet) |
3,095 L | 2,080 x 1,240 x 1,200 mm 81.9 x 48.8 x 47.2 in |
2,410 x 1,560 x 1,585 mm 94.9 x 61.4 x 62.4 in |
996 kg 2,189 lb |
336 kg 741 lb |
401 kg 884 lb |
|
3. Temperature ranges and ISTA 7D thermal autonomy
Qualified to rigorous ISTA 7D standards (Summer and Winter profiles), the HPPS guarantees continuous thermal autonomy for up to 144 hours (6 days), covering the most complex international routes and potential customs delays.
Cool (+2°C / +8°C): Maintains vaccines, insulin, blood products, and biotechnology therapies without risk of freezing.
Temperate (+15°C / +25°C) or (+2°C / +25°C): Protects medicines and active pharmaceutical ingredients (APIs) sensitive to ambient temperature fluctuations.
Freeze (-25°C / -15°C): Sub-zero preservation for biological samples, gene therapies, and oncology products.
Logistics innovation: Flat-Packed delivery & express assembly
The EMBALL'ISO HPPS has been specially engineered to streamline upstream and downstream logistics costs. Fully knock-down and deliverable flat-packed, it drastically reduces empty storage volumes. Its ergonomic design allows for complete assembly and disassembly in under 5 minutes without complex tools.
The HPPS solution meets the strict requirements of key life sciences stakeholders:
Pharmaceutical & Biotechnology Industries: International shipping of human healthcare products (vaccines, insulin, triple therapies, oncology drugs).
3PL / 4PL Logistics Specialists: Optimization of temperature-controlled flows with guaranteed GDP (Good Distribution Practice) compliance.
Clinical Trials & Biological Samples: Securing biomedical samples and diagnostic materials.
Animal Health: Transport of sensitive veterinary vaccines and treatments.
4. CSR Commitment and Reuse & Reverse Program
Aligned with EMBALL’ISO’s CSR approach, the HPPS is reusable packaging that fits fully into the circular economy. Thanks to the Reuse & Reverse services, companies reduce their carbon footprint and optimize total cost of ownership (TCO).
6. FAQ
The HPPS (High Performance Pallet Shipper) is a large-volume reusable insulated packaging solution designed for the temperature-controlled transport of pharmaceutical pallets (Euro and US) for 144 hours.
The HPPS is certified according to ISTA 7D standards (Summer & Winter) for three ranges: Cool (+2°C/+8°C), Temperate (+15°C/+25°C), and Freeze (-25°C/-15°C).
Thanks to its demountable and ergonomic design, the HPPS can be assembled and disassembled in under 5 minutes.
