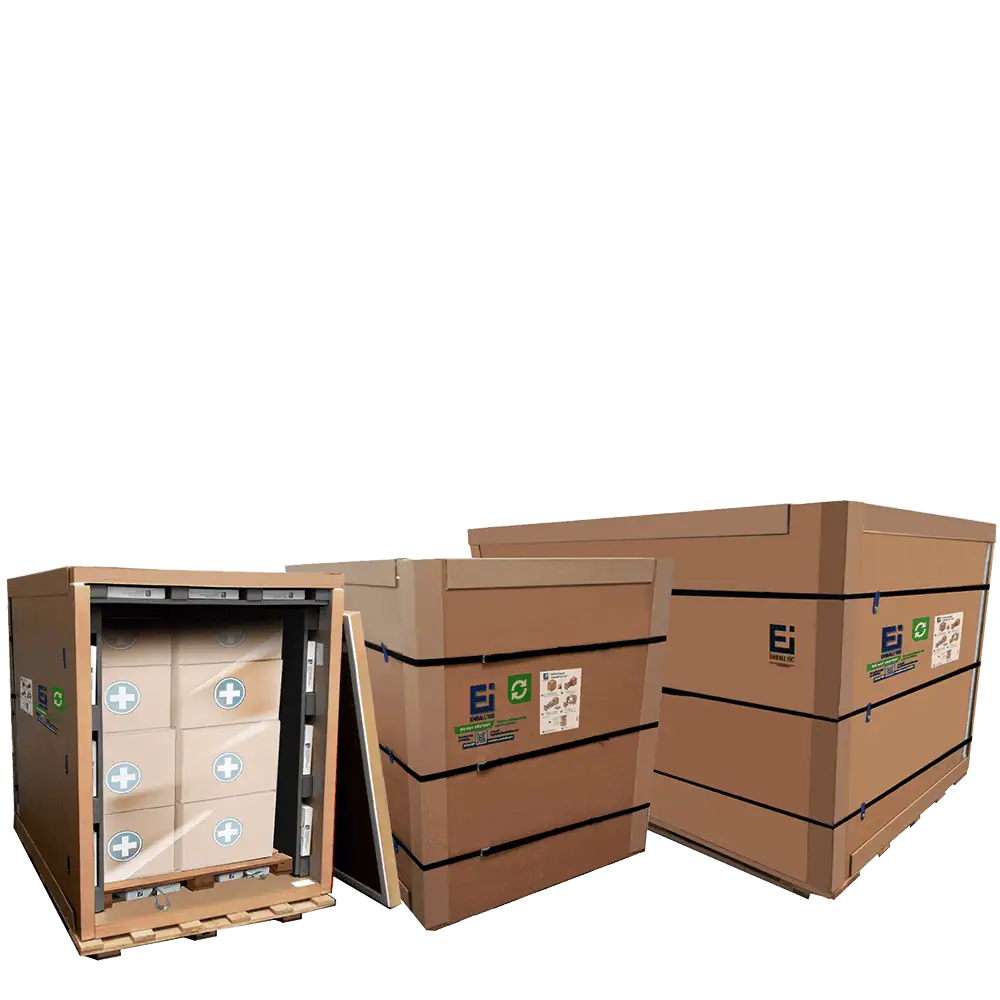

Pallet Shipper

Cargo Shipment

Standard

Premium

Reusable Packaging

Duration

Up to 120 hours

Payload

Quarter PMC (1 448 L, 1 664 L)
Air Cargo US (1 679 L)
Half PMC (3 410 L)

Temperature range

Cool +2°C/+8°C
Temperate +2°C/+25°C
Temperate +15°C/+25°C

Pallet Shippers are designed to reduce your transport costs and streamline operations:

Record lightweight: by using Polyurethane (PU) and Extruded Polystyrene (XPS), our solutions are the lightest of the market.

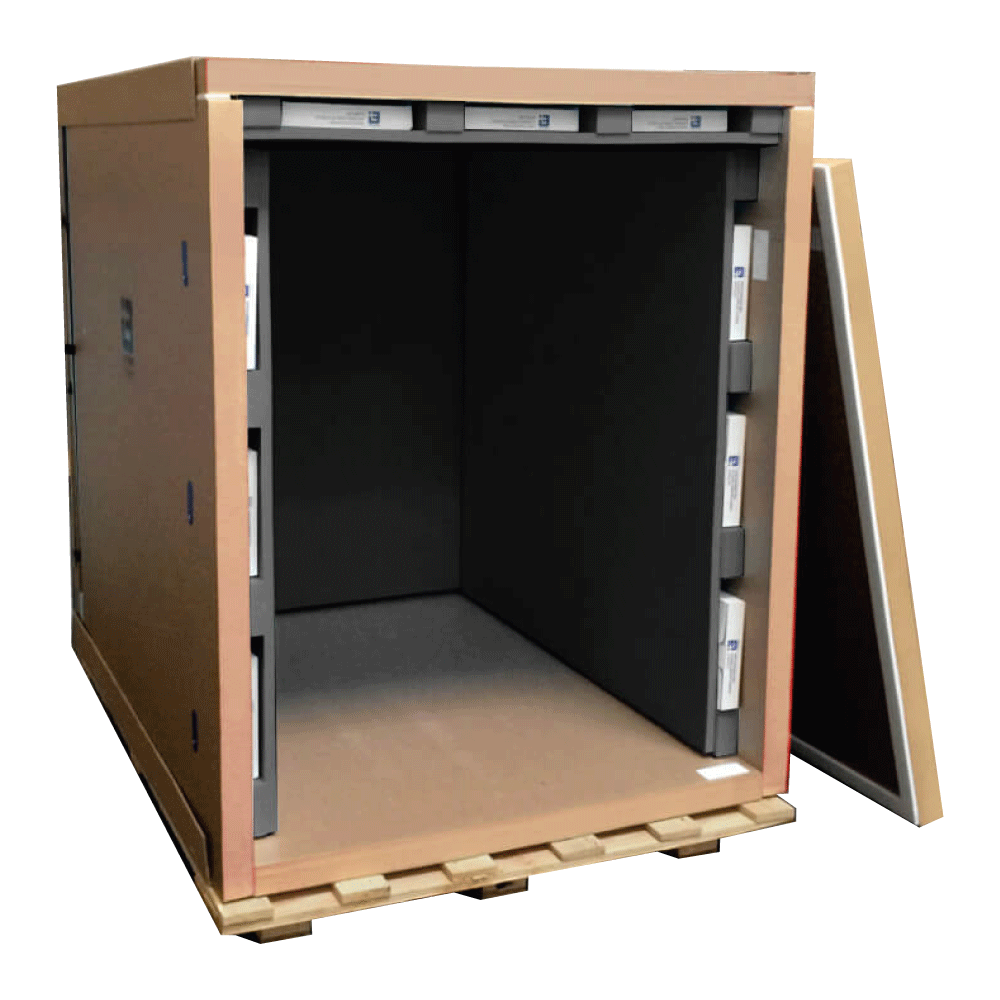

Simplified loading: a pallet is integrated directly into the base of the packaging, allowing for manual loading or the use of a forklift.
Operational time savings: assembly and disassembly can be completed in less than 5 minutes.

					SYSTEM WEIGHT
Product name	Payload	Internal Space L x W x H	External dimension L x W x H	Volumetric weight	STANDARD (water) Cool / Temperate	PREMIUM (PCM) Cool	PREMIUM (PCM) Temperate
Quarter PMC (1 Euro Pallet)	1 448 L	1 278 x 908 x 1 248 mm 50.3 x 35.7 x 49.1 in	1 545 x 1 170 x 1 575 mm 60.8 x 46 x 62 in	476 kg 1 043 lb	165 kg 364 lb	159 kg 350 lb	148 kg 326 lb
Quarter PMC for US pallet (1 US Pallet)	1 664 L	1 278 x 1 043 x 1 248 mm 50.3 x 41.1 x 49.1 in	1 545 x 1 170 x 1 575 mm 60.8 x 46 x 62 in	476 kg 1 043 lb	115 kg 254 lb	N/A	104 kg 229 lb
Air Cargo US (1 US Pallet)	1 679 L	1 278 x 1 053 x 1 248 mm 50.3 x 41.5 x 49.1 in	1 545 x 1 315 x 1 575 mm 60.8 x 51.8 x 62 in	535 kg 1 176 lb	178 kg 392 lb	160 kg 353 lb	160 kg 353 lb
Half PMC (2 Euro or US Pallet)	3 410 L	2 138 x 1 278 x 1 248 mm 85.2 x 50.3 x 49.1 in	2 400 x 1 545 x 1 575 mm 94.5 x 60.8 x 62 in	976 kg 2 145 lb	275 kg 606 lb	263 kg 580 lb	247 kg 545 lb

*Indicative system weight tolerance ± 10 kg (22 lb)

*N/A: This configuration is not available for this product.
