Standard
Premium
Duration
Up to 120 hours
Payload
87 L
95 L
171 L
340 L
387 L
414 L
438 L
564 L
Temperature range
Cool +2°C/+8°C
Temperate +2°C/+25°C
Temperate +15°C/+25°C

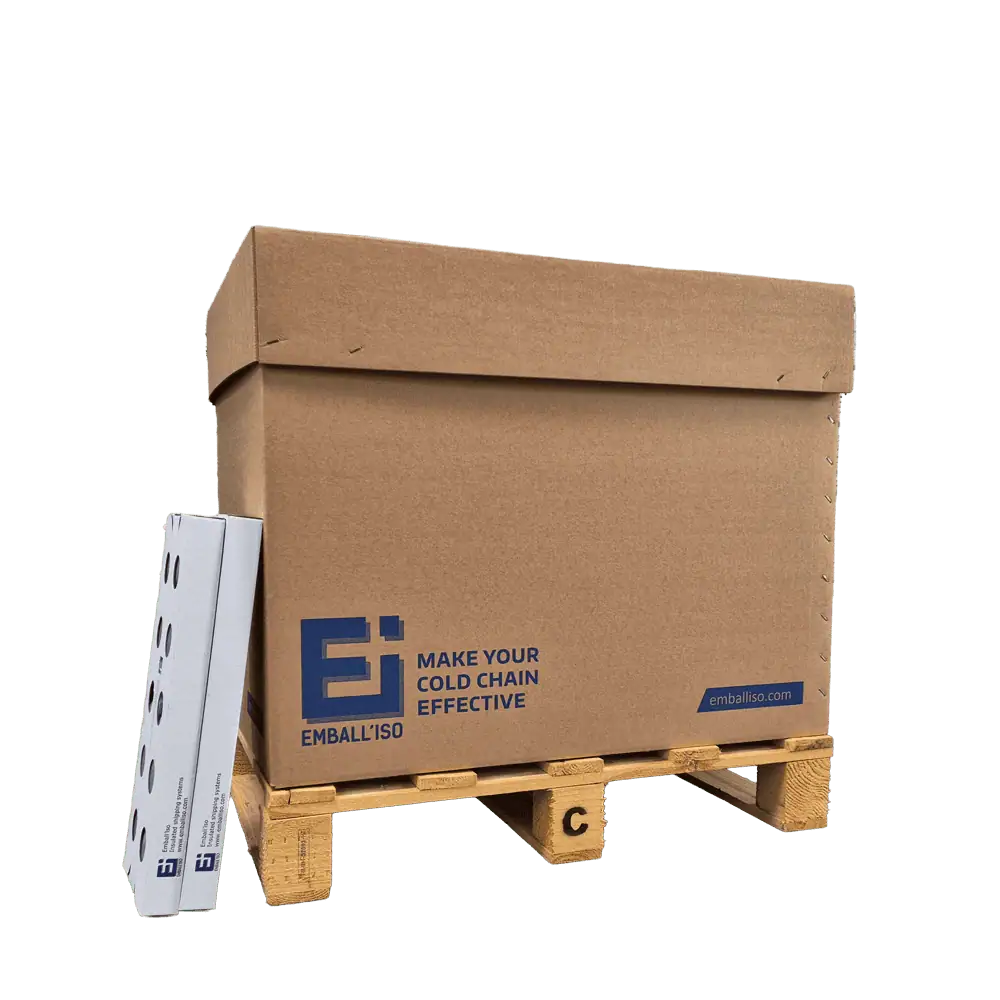

Box Pallet are designed to facilitate the shipment of large volumes of temperature-sensitive products while ensuring reliable thermal protection and optimized logistics operations:
| SYSTEM WEIGHT | |||||||
|---|---|---|---|---|---|---|---|
| Product name | Payload | Internal Space L x W x H |
External dimension L x W x H |
Volumetric weight | STANDARD (water) Cool / Temperate |
PREMIUM (PCM) Cool |
PREMIUM (PCM) Temperate |
| BP 87 | 87 L | 565 x 370 x 415 mm 22.2 x 14.6 x 16.3 in |
800 x 600 x 648 mm 31.5 x 23.6 x 25.5 in |
52 kg 115 lb |
N/A | 38 kg 84 lb |
37 kg 82 lb |
| BP 95 | 95 L | 565 x 370 x 455 mm 22.2 x 14.6 x 17.9 in |
800 x 600 x 648 mm 31.5 x 23.6 x 25.5 in |
52 kg 115 lb |
39 kg 86 lb |
N/A | N/A |
| BP 171 | 171 L | 972 x 572 x 307 mm 38.3 x 22.5 x 12.1 in |
1 200 x 800 x 580 mm 47.2 x 31.5 x 22.8 in |
93 kg 205 lb |
50 kg 110 lb |
56 kg 124 lb |
55 kg 121 lb |
| BP 387 | 387 L | 923 x 723 x 580 mm 36.3 x 28.5 x 22.8 in |
1 200 x 1 000 x 850 mm 47.2 x 39.4 x 33.5 in |
170 kg 375 lb |
88 kg 194 lb |
76 kg 168 lb |
91 kg 201 lb |

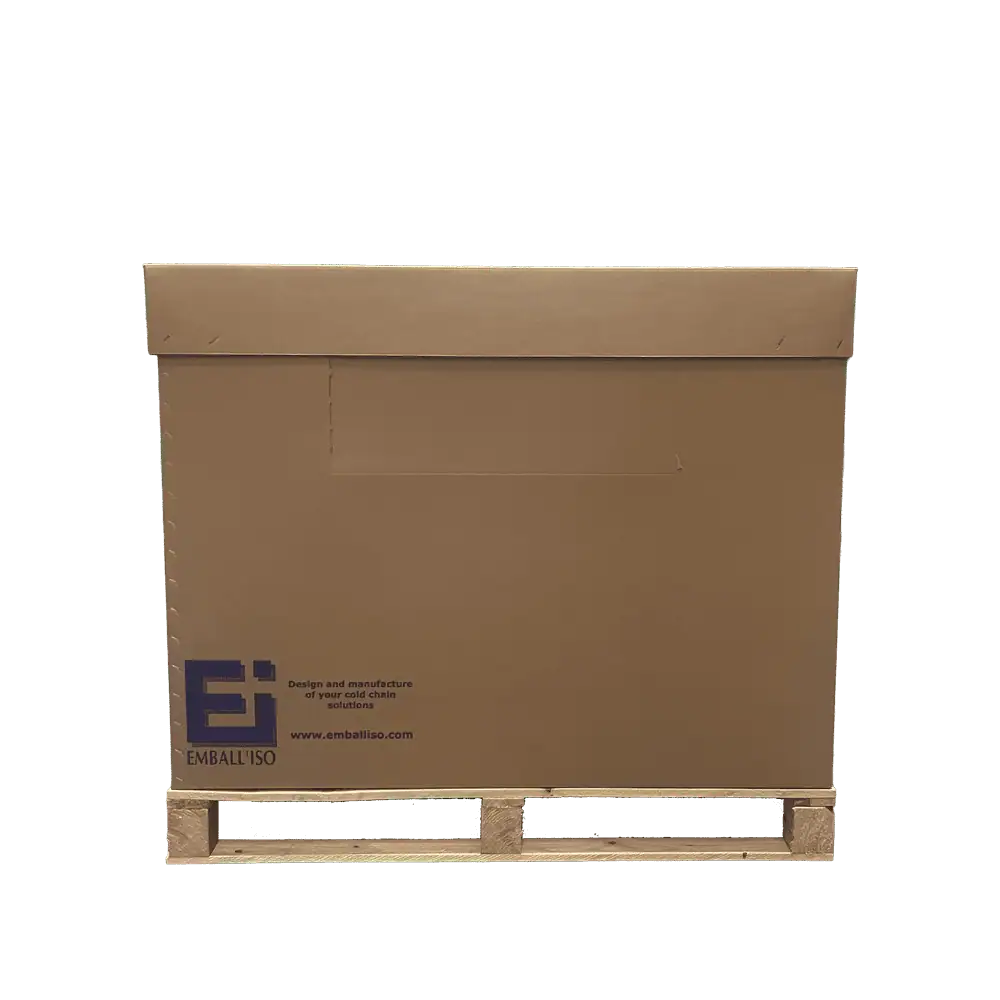

| BP 414 | 414 L | 992 x 592 x 705 mm 39.1 x 23.3 x 27.8 in |
1 200 x 800 x 940 mm 47.2 x 31.5 x 37.0 in |
151 kg 332 lb |
96 kg 212 lb |
82 kg 179 lb |
80 kg 176 lb |
| BP 438 | 438 L | 992 x 592 x 745 mm 39.1 x 23.3 x 29.3 in |
1 200 x 800 x 940 mm 47.2 x 31.5 x 37.0 in |
151 kg 332 lb |
83 kg 183 lb |
N/A | N/A |
| BP 564 | 564 L | 925 x 730 x 835 mm 36.4 x 28.7 x 32.9 in |
1 200 x 1 000 x 1 100 mm 47.2 x 39.4 x 43.3 in |
220 kg 485 lb |
106 kg 234 lb |
111 kg 245 lb |
109 kg 240 lb |
*Indicative system weight tolerance ± 10 kg (22 lb)
N/A: This configuration is not available for this product.
EMBALL’ISO manages the collection of reusable packaging at your destination.
These packaging are returned using the transportation method with the lowest CO₂ emissions to the nearest EMBALL’ISO Service center. They are then cleaned, refurbished, and inspected by EMBALL’ISO to ensure the same performance. They can be reused within the same country or shipped back by sea freight to where customers need them.
