high-performance temperature-controlled packaging systems

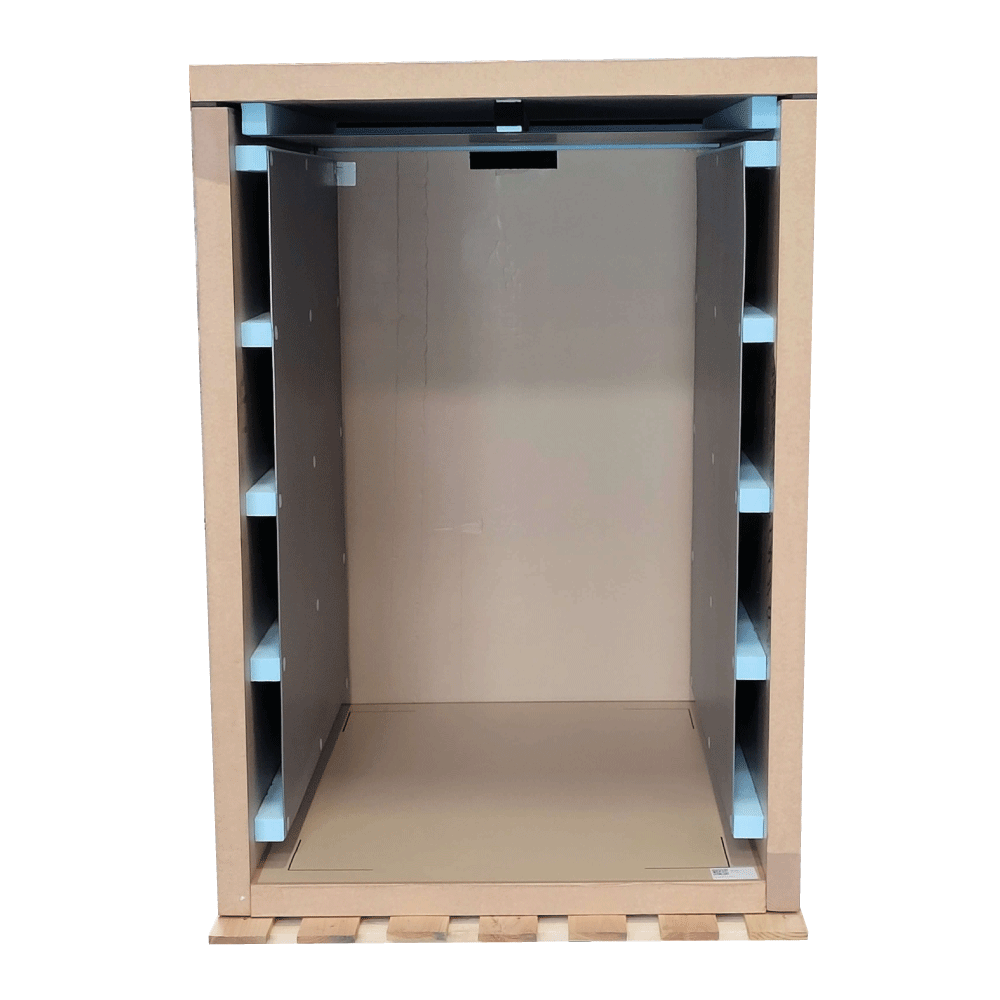

Modular Box Pallet
Modular Box Pallet EMBALL'ISO

Modular Box Pallet

Cargo Shipment

Standard

Premium

Reusable Packaging

Duration

Up to 120 hours

Payload

From 601 L to 1 019 L

Temperature range

Cool +2°C/+8°C
Temperate +15°C/+25°C

Product sheet
Contact

PREMIUM or STANDARD isothermal solution for high-volume temperature-controlled shipments

Modular Box Pallet containers are designed to combine strong thermal performance for up to 120 hours with maximum logistics flexibility, enabling efficient transport and simplified Reuse & Reverse logistics operations:

  • Modular and foldable design: lightweight and fully dismantlable, allowing assembly and disassembly in less than 6 minutes and enabling flat-pack transport and storage.
  • Optimized costs and sustainability: large capacity, reusable within the Reuse & Reverse network, designed to reduce transport, storage, and environmental impact.



SYSTEM WEIGHT
Product name Payload Internal Space
L x W x H		 External dimension
L x W x H		 Volumetric weight STANDARD (water)
Cool / Temperate		 PREMIUM (PCM)
Cool
Modular BP 601 6 sides 601 L 955 x 768 x 819 mm
37.6 x 30.2 x 32.2 in		 1 201 x 1 006 x 1 194 mm
47.3 x 39.6 x 47 in		 241 kg
530 lb		 N/A 106 kg
234 lb
Modular BP 723 3 sides 723 L 1067 x 768 x 882 mm
42 x 30.2 x 34.7 in		 1 201 x 1006 x 1194 mm
47.3 x 39.6 x 47 in		 241 kg
530 lbs		 76 kg
168 lb		 N/A
Modular BP 866 6 sides 866 L 955 X 768 X 1 181 mm
37.6 x 30.2 x 46.5 in		 1 201 x 1 006 x 1 556 mm
47.3 x 39.6 x 61.3 in		 314 kg
691 lb		 N/A 124 kg
273 lb
Modular BP 1019 3 sides 1 019 L 1 067 x 768 x 1 244 mm
42 x 30.2 x 49 in		 1 201 x 1 006 x 1 556 mm
47.3 x 39.6 x 61.3 in		 314 kg
691 lb		 94 kg
207 lb		 N/A

*Indicative system weight tolerance ± 10 kg (22 lb)

*N/A: This configuration is not available for this product.
